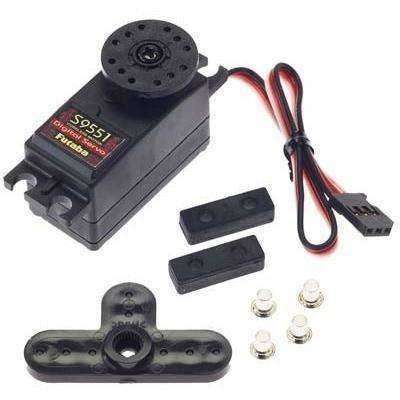

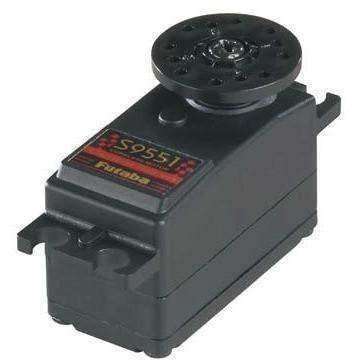

Futaba S9551 Digital Low-Profile High-Speed/Torq Servo

FEATURES
Digitally enhanced microprocessor cuts about half of the response
time from transmitter input to servo reaction
Low profile allows for the servo to fit into wings and lie down
in car chassis for less obstruction
Coreless motor
Metal gears
Dual ball-bearings
Black plastic case
Dust and water resistant (not waterproof)
One year limited warranty
Ideal for F3A aileron application and 1/10 scale electric touring car

SPECIFICATIONS
Speed: 0.14 sec/60° @ 4.8V
0.11 sec/60° @ 6.0V
Torque: 98 oz-in (7.0kg/cm) @ 4.8V
122 oz-in (8.8 kg-cm) @ 6.0V
Weight: 1.6oz (45g)
Dimensions: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
Distance Between Mounting Hole Centers: 0.39" (10mm)
Horn Screw Size: 3x8mm

9551
