SMC SMCRF-170 1S

The RF-170 1S ESC replaces our popular RF-120 and features lower resistance FETS , bigger on/off button and removeable receiver harness. This ESC is for racers who want a smooth and reliable ESC at an affordable price. A built in BEC booster provides 6V @ 3.5A of output to power today's digital servos.

ESC is programmable with a Program Box or PC program which also allows you to update the firmware.

This ESC has a Blinky mode that meets ROAR specs and will be submitted to ROAR.

Part # RF-170-1S is the ESC only, supplied with 12 Guage wires (not soldered to ESC).

Part # RF-170-1SPB is same as above but includes a Program Box for field programming and a USB cable and adapter for use with the PC program.

Specifications

• Amps: 170A
• Size: Footprint W30.5mm x L36.8mm x H15.2mm. Width including solder tabs is 36.8mm
• Weight: 42g with cap but without wires
• Case: Aluminum case for maximum cooling
• BEC: 6V @ 3.5A (Integrated DC booster)
• Battery: 1S LiPo/LiFe or 3-4 cell NiMh/NiCd
• Motor Type: 540 brushless sensored
• Motor Limit: 3.0T on 1S
• Switch: Integrated on/off switch

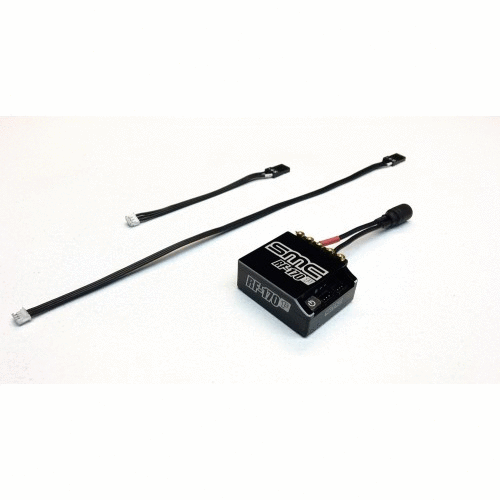

• Removable receiver harness. ESC comes with 2 different length harnesses.

Adjustable Features

• Operation Mode: Forward/Brake, Forward/Brake/Reverse and Forward/Reverse
• Voltage Cut Off
• ESC Overheat Protection (Temperature Set)
• Reverse Rotation
• Throttle:
• Punch Profile
• Drive Frequency
• Neutral Dead Band
• Reverse Speed
• Brake:
• Initial Brake
• Drag Brake
• Brake Strength
• Brake Frequency
• Boost:
• Boost Timing
• Boost RPM
• Boost ACC
• Turbo:
• Turbo Timing
• Turbo Slope
• Turbo Delay
